1. Low‑entry‑cost Model to Step Into Paving‑brick Manufacturing Business
QTJ4‑35 is an economical main unit developed for start‑up investors in paving‑brick industry, with much lower procurement cost compared with heavy‑duty large‑size models. It is highly suitable for buyers with limited capital budget who want to engage in building‑material production. Fast mould replacement is supported. One free manganese‑steel hollow mould comes in standard package, and custom non‑standard moulds for permeable pavers, interlocking paving stones and river slope protection blocks are optional. A single machine can produce sidewalk paving bricks, slope blocks, hollow blocks and solid standard bricks simultaneously. Instead of heavy one‑time investment on large production lines, you can handle various small‑scale municipal, landscaping and river‑regulation paving projects simply by switching moulds. It expands your business diversity with limited upfront capital and reduces startup risks. Custom manganese‑steel moulds deliver outstanding wear‑resistance and cut extra mould replacement expenditure in later operation.
2. Independent Bottom Table‑vibration Box Ensures Premium Paving‑brick Quality & Less Defective Rate
Drawing on European table‑vibration technology, this machine is fitted with an independent bottom vibration box delivering 45KN exciting force. Concrete mixture fills every corner of mould cavity thoroughly by stable platform vibration, with 35‑second forming cycle per mould. This vibration structure effectively improves compactness of finished paving and slope bricks. Output blocks reach required strength with intact sharp edges, reducing rejects caused by delamination, chipping and inner voids. The separated vibration box protects motors and lowers burnout risk under intermittent long‑time production of small‑and‑medium brick plants. Consistent brick quality meets acceptance criteria for general construction projects, cuts raw‑material and time loss brought by defective products, and helps you gain repeat orders from engineering contractors.
3. Wide Raw‑material Compatibility, Utilize Local Industrial Waste to Reduce Paving‑brick Material Expense
QTJ4‑35 shows great flexibility on raw material selection. Besides regular cement, crushed stone and river sand, it can adopt locally‑available industrial residues including stone dust, fly ash, mine slag and gangue for paving‑brick manufacturing. Mature proportion references are provided for you to adjust formula according to local material conditions. Making full use of on‑site waste feedstock saves high expense for long‑distance aggregate purchasing and transportation. Cooperated with JQ350 pan mixer, stable paving‑brick output can be realized without expensive complicated pre‑treatment devices. Using industrial waste directly raises profit margin for each finished brick, and also helps you qualify for global green‑building project tenders.
4. Light‑weight Compact Body, Low Site Requirement, Easy for Oversea Shipment & Deployment

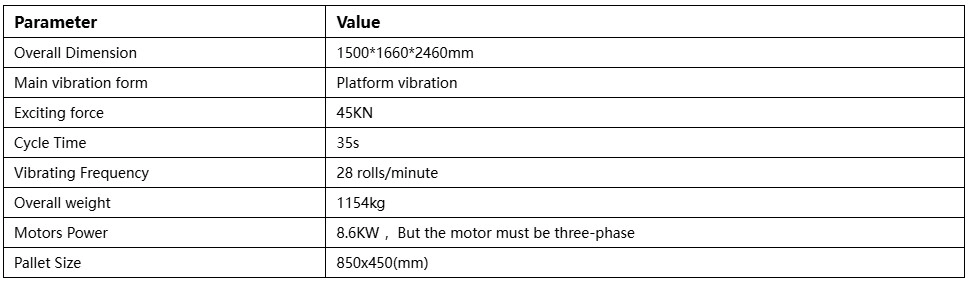

Weighing only 1154 kg with overall dimension 1500×1660×2460 mm, this machine features light‑weight and compact structure. It only needs flat hardened ground for installation rather than heavy civil foundation, so you can run production in old workshops or simple factory sheds. Main host, mixer and all accessories can be loaded into one single 20ft container, greatly simplifying container arrangement, sea transportation and customs clearance procedures for overseas customers and lowering cross‑border logistics trouble and cost. It perfectly fits small brick plants with limited workshop space; you do not need large‑scale plant reconstruction to launch paving‑brick mass production.
5. Centralized Electric Control Simplify Workflow & Lower Labor Cost

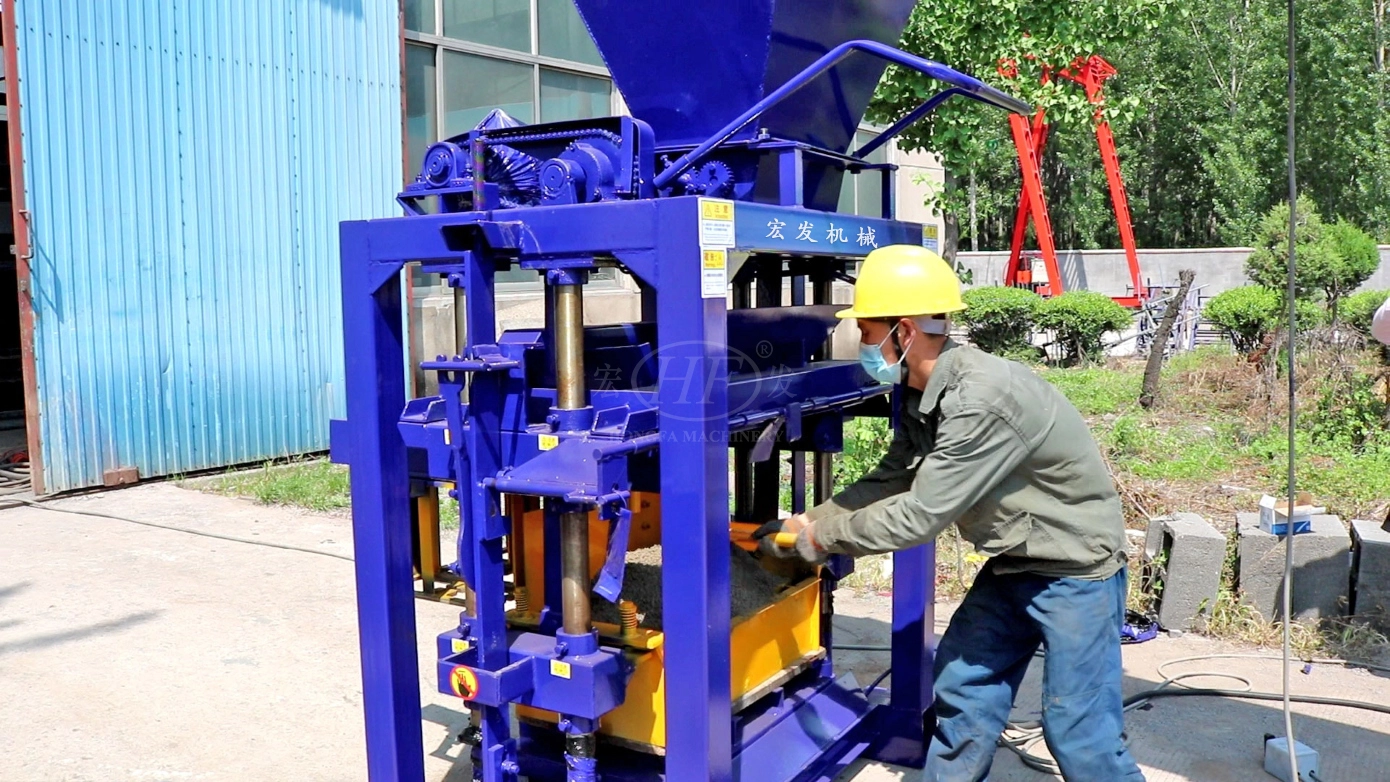

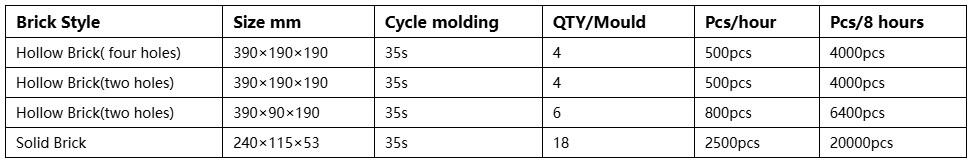

Upper mould movement and raw material discharging are centrally managed by control cabinet, equipped with electric upper‑mould pushing mechanism to eliminate heavy manual operation and relieve workers’ physical burden. The 850×450 mm standard pallet circulation system allows fresh green bricks to be stacked for natural curing right after demoulding. The whole workflow is user‑friendly. General workers can master operation after short‑period training without high‑salary skilled technicians. It can produce up to 4000 hollow blocks or 20000 solid bricks per 8‑hour shift. Its output capacity matches order volume of startup paving‑brick factories and avoids equipment idling waste, helping factories keep labor‑related operational cost under effective control.
6. Complete Supporting Package & Reliable Foreign‑trade Commercial Support

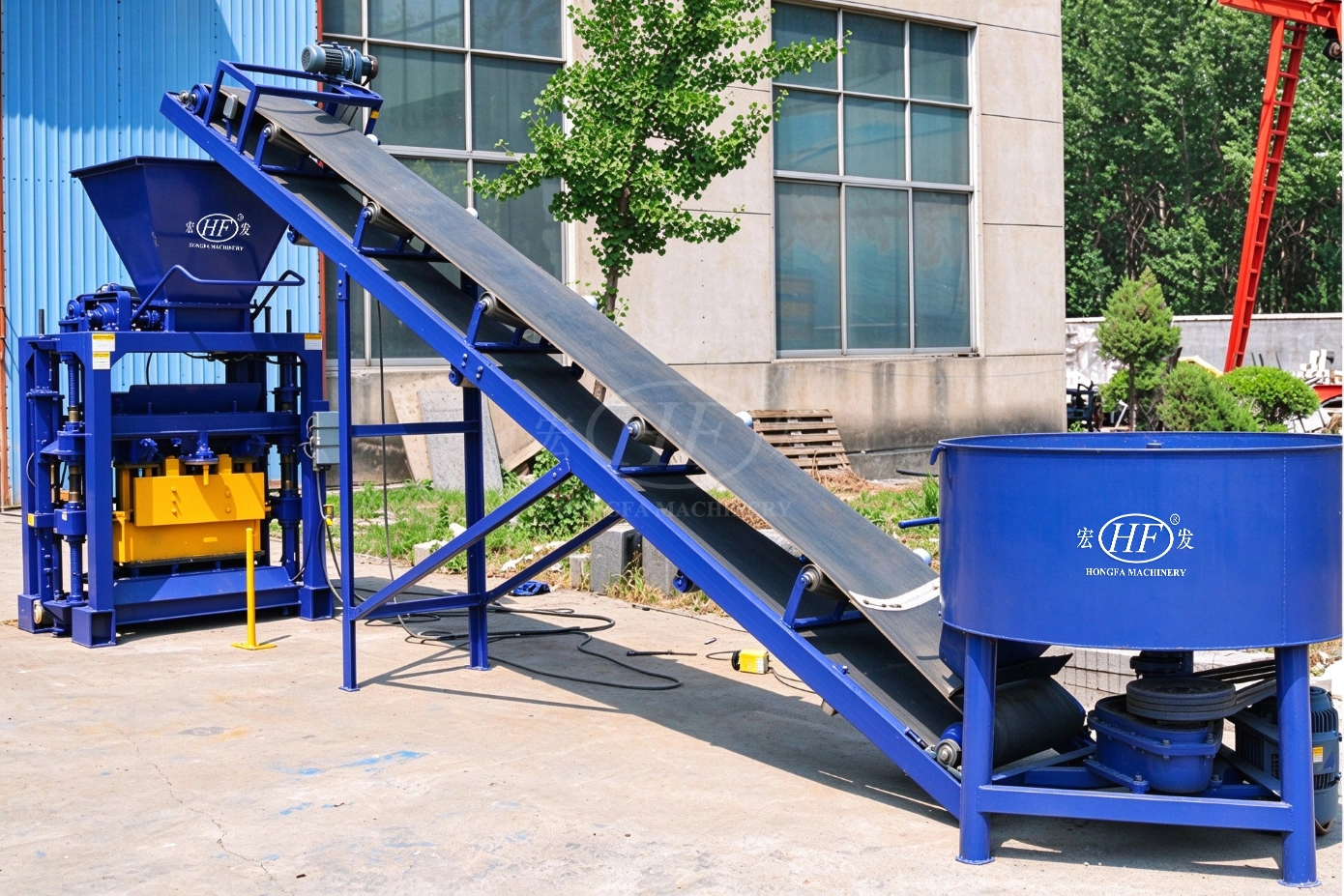

Basic production scope includes QTJ4‑35 main machine, material hopper, spare parts, one free hollow mould and JQ350 concrete pan mixer. One hand trolley is supplied for green brick transportation to build your basic production unit quickly. Trade term is FOB Qingdao. Available payment options contain 30% TT deposit plus balance before shipment or full confirmed irrevocable sight L/C. Goods will be delivered within 25 days after receiving deposit and mould confirmation. One‑year full warranty takes effect upon completion of on‑site installation and commissioning at buyer’s factory. Mature procurement terms adapt to international purchasing habits and offer comprehensive delivery & after‑sales guarantee for new brick plants, enabling you to make clear schedule for factory setup, production and sales in advance.
1. Low‑entry‑cost Model to Step Into Paving‑brick Manufacturing Business
QTJ4‑35 is an economical main unit developed for start‑up investors in paving‑brick industry, with much lower procurement cost compared with heavy‑duty large‑size models. It is highly suitable for buyers with limited capital budget who want to engage in building‑material production. Fast mould replacement is supported. One free manganese‑steel hollow mould comes in standard package, and custom non‑standard moulds for permeable pavers, interlocking paving stones and river slope protection blocks are optional. A single machine can produce sidewalk paving bricks, slope blocks, hollow blocks and solid standard bricks simultaneously. Instead of heavy one‑time investment on large production lines, you can handle various small‑scale municipal, landscaping and river‑regulation paving projects simply by switching moulds. It expands your business diversity with limited upfront capital and reduces startup risks. Custom manganese‑steel moulds deliver outstanding wear‑resistance and cut extra mould replacement expenditure in later operation.
2. Independent Bottom Table‑vibration Box Ensures Premium Paving‑brick Quality & Less Defective Rate
Drawing on European table‑vibration technology, this machine is fitted with an independent bottom vibration box delivering 45KN exciting force. Concrete mixture fills every corner of mould cavity thoroughly by stable platform vibration, with 35‑second forming cycle per mould. This vibration structure effectively improves compactness of finished paving and slope bricks. Output blocks reach required strength with intact sharp edges, reducing rejects caused by delamination, chipping and inner voids. The separated vibration box protects motors and lowers burnout risk under intermittent long‑time production of small‑and‑medium brick plants. Consistent brick quality meets acceptance criteria for general construction projects, cuts raw‑material and time loss brought by defective products, and helps you gain repeat orders from engineering contractors.
3. Wide Raw‑material Compatibility, Utilize Local Industrial Waste to Reduce Paving‑brick Material Expense
QTJ4‑35 shows great flexibility on raw material selection. Besides regular cement, crushed stone and river sand, it can adopt locally‑available industrial residues including stone dust, fly ash, mine slag and gangue for paving‑brick manufacturing. Mature proportion references are provided for you to adjust formula according to local material conditions. Making full use of on‑site waste feedstock saves high expense for long‑distance aggregate purchasing and transportation. Cooperated with JQ350 pan mixer, stable paving‑brick output can be realized without expensive complicated pre‑treatment devices. Using industrial waste directly raises profit margin for each finished brick, and also helps you qualify for global green‑building project tenders.
4. Light‑weight Compact Body, Low Site Requirement, Easy for Oversea Shipment & Deployment
Weighing only 1154 kg with overall dimension 1500×1660×2460 mm, this machine features light‑weight and compact structure. It only needs flat hardened ground for installation rather than heavy civil foundation, so you can run production in old workshops or simple factory sheds. Main host, mixer and all accessories can be loaded into one single 20ft container, greatly simplifying container arrangement, sea transportation and customs clearance procedures for overseas customers and lowering cross‑border logistics trouble and cost. It perfectly fits small brick plants with limited workshop space; you do not need large‑scale plant reconstruction to launch paving‑brick mass production.
5. Centralized Electric Control Simplify Workflow & Lower Labor Cost
Upper mould movement and raw material discharging are centrally managed by control cabinet, equipped with electric upper‑mould pushing mechanism to eliminate heavy manual operation and relieve workers’ physical burden. The 850×450 mm standard pallet circulation system allows fresh green bricks to be stacked for natural curing right after demoulding. The whole workflow is user‑friendly. General workers can master operation after short‑period training without high‑salary skilled technicians. It can produce up to 4000 hollow blocks or 20000 solid bricks per 8‑hour shift. Its output capacity matches order volume of startup paving‑brick factories and avoids equipment idling waste, helping factories keep labor‑related operational cost under effective control.
6. Complete Supporting Package & Reliable Foreign‑trade Commercial Support
Basic production scope includes QTJ4‑35 main machine, material hopper, spare parts, one free hollow mould and JQ350 concrete pan mixer. One hand trolley is supplied for green brick transportation to build your basic production unit quickly. Trade term is FOB Qingdao. Available payment options contain 30% TT deposit plus balance before shipment or full confirmed irrevocable sight L/C. Goods will be delivered within 25 days after receiving deposit and mould confirmation. One‑year full warranty takes effect upon completion of on‑site installation and commissioning at buyer’s factory. Mature procurement terms adapt to international purchasing habits and offer comprehensive delivery & after‑sales guarantee for new brick plants, enabling you to make clear schedule for factory setup, production and sales in advance.
